114894 PUMPS-POSITIVE DISPLACEMENT
  • ITEM NO :  114894
  • QTY :  1
  • ALLOY :  S
  • TYPE :  ROTARY LOBE
  • GPM :  100
  • PSI :  40
  • MATERIAL :  316LSS
  • V/H :  H
  • MANUFACTURER :  Vogelsang
  • MODEL :  IQ112-114
  • DRIVER TYPE :  MOTOR
  • HP :  7.5
  • RPM :  1765
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Data, Drawing and Curve
View Documents Motor Data Sheet
ADDITIONAL DESCRIPTION

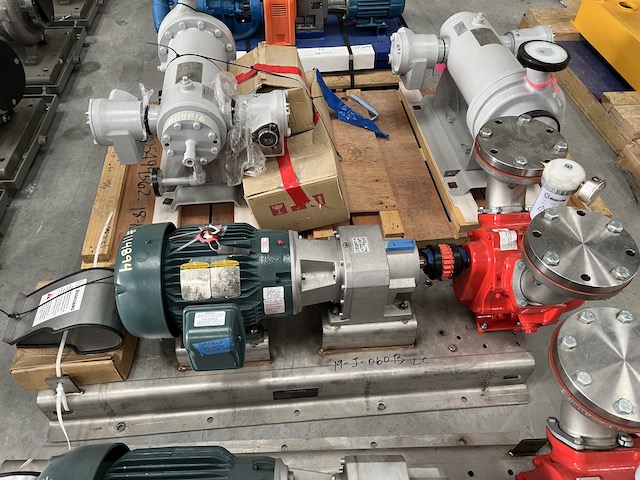

Unused Horizontal Positive Displacement DAF Float Transfer Rotary Lobe Pump. Mfg. by Vogelsang. Model IQ112-114. 110 gpm. Discharge Pressure 40 psi. Discharge Head 92 ft. Inlet pressure 0.0 psi. Differential pressure 40 psi. Rated power 5.2 BHP. Pump speed 370 rpm. Motor Mfg. by Baldor, 7.5 hp, 1765 rpm, 460 volts. Nord Gearbox - gear ratio 4.61, frame 210 TC.
