114522 BLOWERS
  • ITEM NO :  114522
  • QTY :  1
  • ICFM :  6738.99
  • MANUFACTURER :  HOWDEN
  • MODEL :  HBXrG 20/675/LG0
  • DRIVER TYPE :  MOTOR
  • HP :  1603
  • RPM :  5681
Technical Drawings/Spec Sheets
View Documents Information and Drawings
View Documents Howden TurboFan Drawing
View Documents ExVel Brochure
View Documents Howden Toshiba Motor
View Documents Equipment Description
View Documents Specs
View Documents Equipment Facts
ADDITIONAL DESCRIPTION

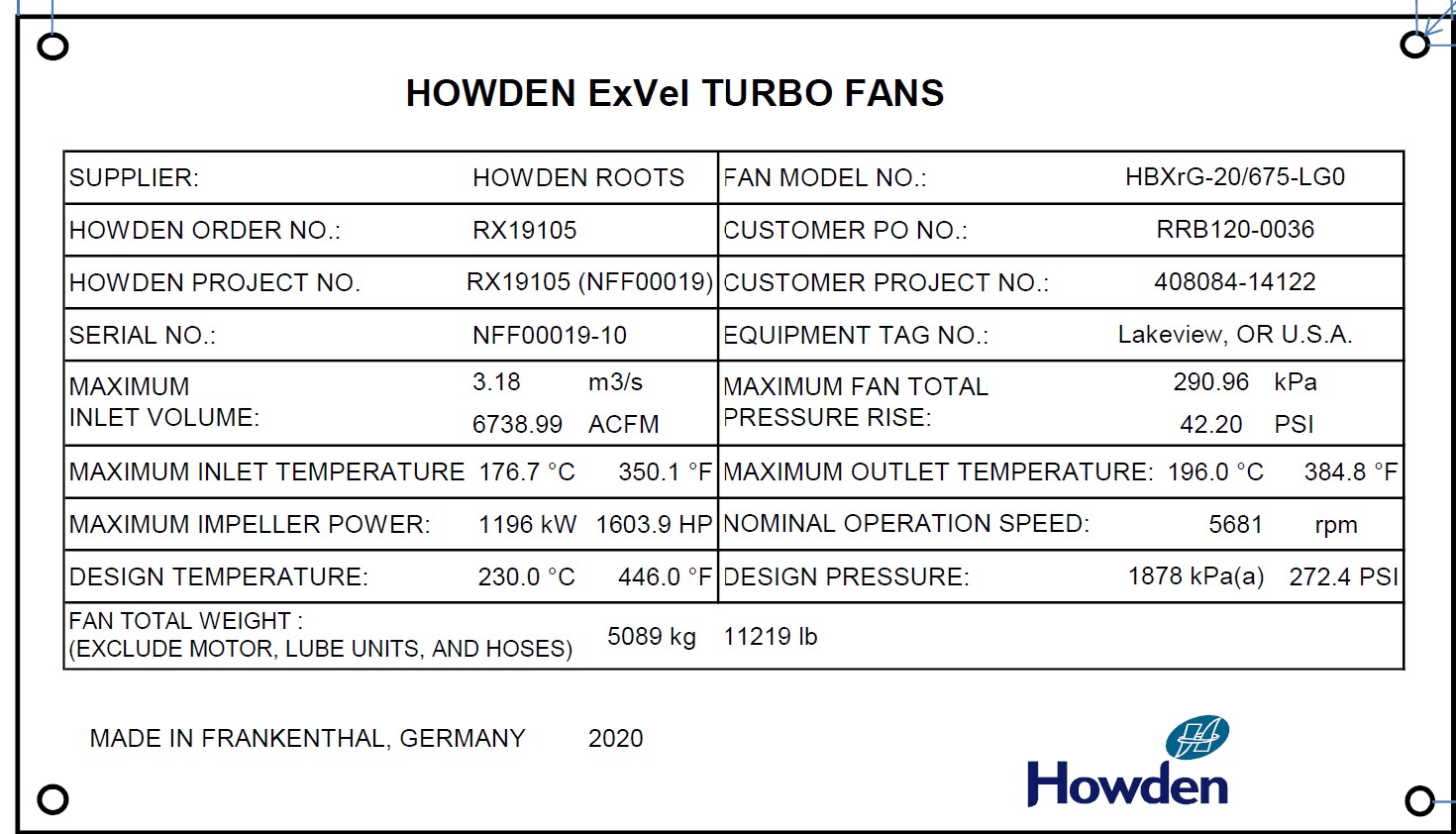

Unused Howden Blower and Motor only. Maximun Inlet Volume 6738.99 ACFM. Maximun inlet temperature 350.1 deg. F. Maximum Impeller Power 1603.9 hp. Design Temperature 446 deg. F. Fan Model #HBXrG-20/675-LG0. Maximum fan total pressure rise 42.20 psi. Maximum outlet temperature 384.8 deg. F. Nominal operation speed 5681 rpm. Design pressure 372.4 psi.
