114778 PUMPS-POSITIVE DISPLACEMENT
  • ITEM NO :  114778
  • QTY :  1
  • ALLOY :  S
  • TYPE :  GEAR
  • GPM :  500
  • PSI :  70
  • MATERIAL :  CS
  • V/H :  H
  • MANUFACTURER :  BLACKMER (DXP)
  • MODEL :  MS4
  • DRIVER TYPE :  MOTOR
  • HP :  40
  • RPM :  1770
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Curve
View Documents Drawing
View Documents Motor Curve
View Documents Motor
View Documents Performance Curve
View Documents PMI
ADDITIONAL DESCRIPTION

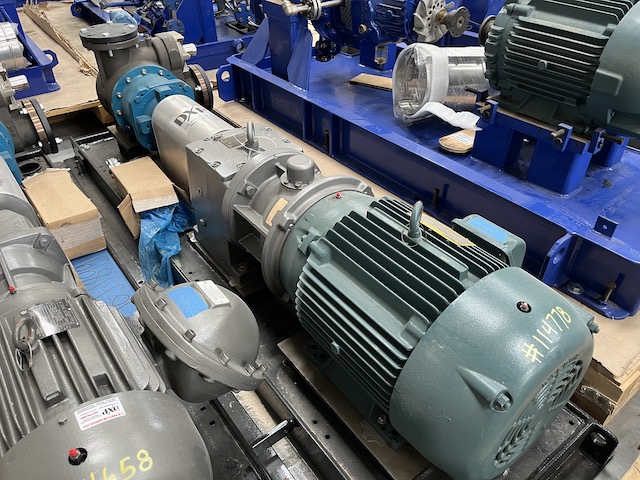

Unused Horizontal Positive Displacement Gear Pump. Mfg. by Blackmer (DXP). Model #MS4. Spur 3 Bio-Diesel Blend Component Unloading Pump. 500 gpm. 12.07' head; 70.6 psig. 160 deg. F. Casing: SS; Vance: Duravane Composite. 4" suction, 4" discharge. 3.30:1 gear ratio. 40 hp motor.
